X300 Plastic Chain Conveyors

FlexLink's X300 permits horizontal as well as vertical transportation of products.

Basic Info

  • TECHNOLOGY: Aluminum Conveyor Systems
  • Secteur: Beverage, Electronics, Pharma & Healthcare, Home Care, Personal Care, Tobacco, Food, Dairy, Tea & Coffee, Tissue & Hygiene, Pet Care, Industrial Goods, Luxury Goods, Automotive & Racing

Description

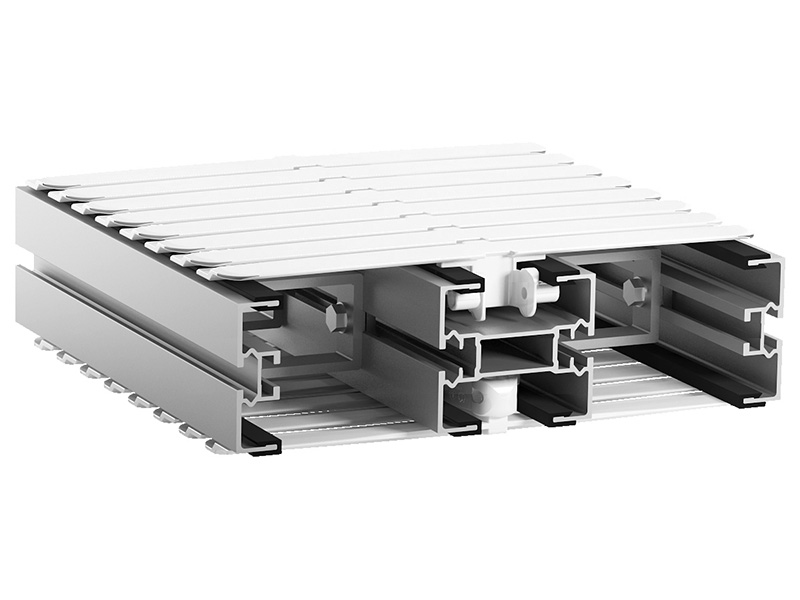

​The multi-flexing X300 plastic chain conveyor system with an aluminum beam permits horizontal and vertical distribution of products. The conveying system's tight vertical bends save floor space by enabling multilevel transportation and making access easy for operators.

The standard conveyor chain width is 300 mm, and the conveyed products vary from a few grams up to 15 kg in many shapes. The collection of standard components guarantees the design of a customized conveyor solution with a fast delivery time.
customized conveyor solution with a fast delivery time.

The conveyor can be configured with a suitable chain according to the production requirements, e.g., temperature, strength, etc.


Technical Documents:

X300 Plastic Chain Conveyor

Detailed Info

Packaging features
Packaging TypeConditionnement secondaire des produits alimentaires et d'hygiène, sacs, produits sous film, cartons, récipients en plastique.
Packaging typeUnpacked, cans, bottles, cartons, doypacks, over-wraps, pouches
Product features
Product stateClean, dirty, dry, wet
Gamme de produits
Max product width (mm)500
Min product width (mm)70
Production environment
Environment typeDry, wet
Operating temperature (°C)-20 to +60
Performance
Max speed (m/min)80
Other technical features
Type de chaînePlain chain, friction top chain
