X85 Plastic Chain Conveyors

FlexLink's X85 is one of the most popular conveyor system in the world with many customization options.

Basic Info

  • TECHNOLOGY: Aluminum Conveyor Systems
  • Secteur: Food, Dairy, Beverage, Electronics, Personal Care, Home Care, Tissue & Hygiene, Industrial Goods, Tobacco, Pharma & Healthcare, Luxury Goods, Pet Care, Tea & Coffee
CONTACTEZ-NOUS
Service après-vente

Description

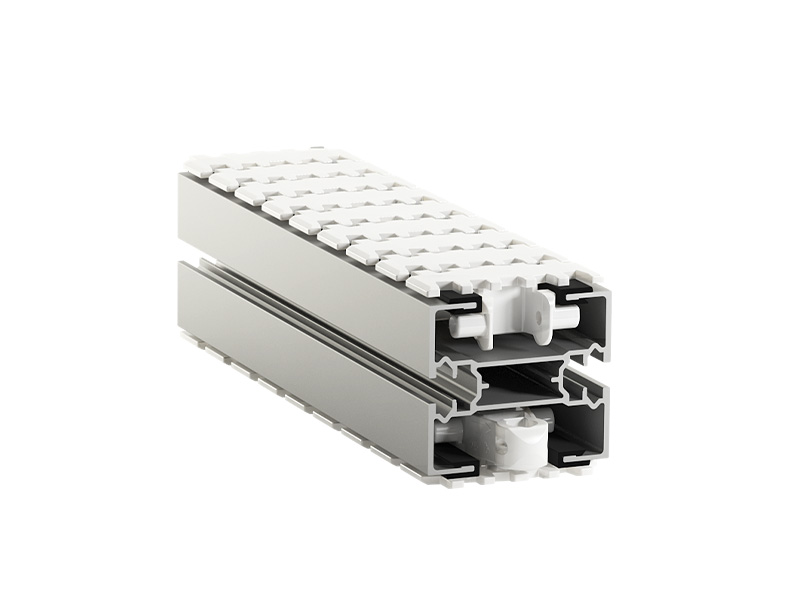

​The multi-flexing X85 plastic chain conveyor system with an aluminum beam permits horizontal and vertical distribution of products. The conveying system's tight vertical bends save floor space by enabling multilevel transportation and making access easy for operators.

The standard conveyor chain width is 85 mm, and the conveyed products vary from a few grams up to 15 kg, in many shapes. The collection of standard components guarantees the design of a customized conveyor solution with a fast delivery time.​

The conveyor can be configured with a suitable chain according to the production requirements, e.g., temperature, strength, etc.


Technical Documents:

X85 Plastic Chain Conveyor

Detailed Info

Afficher plus
Packaging features
Packaging TypeConditionnement secondaire des produits alimentaires et d'hygiène, sacs, produits sous film, cartons, récipients en plastique.
Packaging typeUnpacked, cans, bottles, cartons, doypacks, over-wraps, pouches
Product features
Product stateClean, dirty, dry, wet
Gamme de produits
Max product width (mm)200
Min product width (mm)20
Production environment
Environment typeDry, wet, ESDPlain chain (different types), cleated chain (different types), friction top chain (different types), flexible cleated chain (different types), roller top chain (different types), steel top chain
Operating temperature (°C)-20 to +60
Performance
Max speed (m/min)120
Other technical features
Type de chaîneDry, wet, ESDPlain chain (different types), cleated chain (different types), friction top chain (different types), flexible cleated chain (different types), roller top chain (different types), steel top chain
