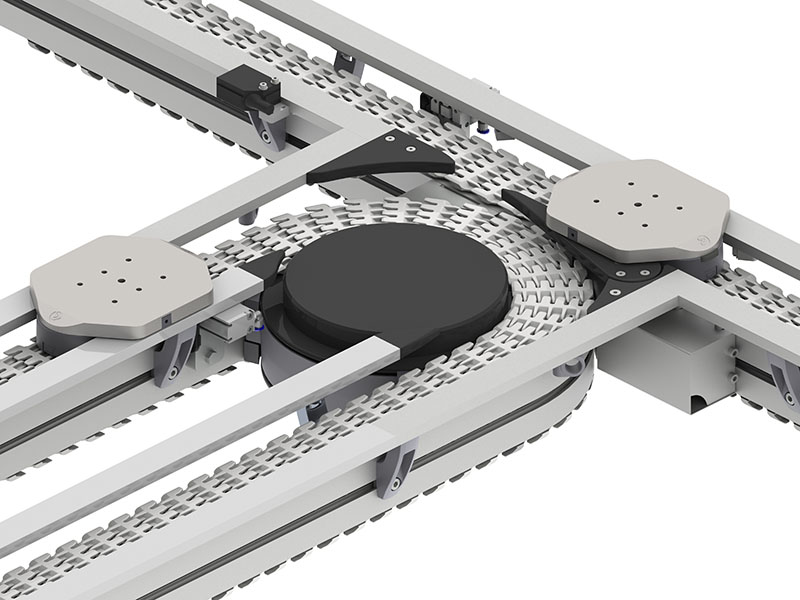

X85P Single Track Pallet Conveyors

This pallet system is widely used in production cells with conveyor highways and satellites for production processes.

Basic Info

  • TECHNOLOGY: Puck and Pallet Conveyor Systems
  • Secteur: Electronics, Pharma & Healthcare, Industrial Goods, Automotive & Racing
CONTACTEZ-NOUS
Service après-vente

Description

​The X85P single track pallet conveyors are based on conveyor components from our standard conveyor lines. A pallet conveyor handles individual products on product carriers (pallets).


The standard pallet width is 85 mm, and the conveyed products vary from a few grams up to 10 kg.

Configurable standard modules make it easy and fast to create advanced and straightforward layouts for routing, balancing, buffering, and positioning pallets. The RFID identification in the pallets enables one-piece track-and-trace and logistic control for the production line.

​

Technical Documents:

X85PSingle Track Pallet Conveyors

Detailed Info

Afficher plus
Packaging features
Packaging TypeConditionnement secondaire des produits alimentaires et d'hygiène, sacs, produits sous film, cartons, récipients en plastique.
Packaging typeAll products and materials that fits on the pallet
Gamme de produits
Max product length (mm)225
Max product width (mm)160
Product features
Product stateClean, dirty, dry
Production environment
Environment typeL'élévateur de palette permet de soulever des palettes standard ou de les déplacer entre deux niveaux différents. L'unité de levage est composée d'un convoyeur court compact XT, qui achemine la palette dans ou hors de l'élévateur. Plusieurs palettes peuvent être soulevées en même temps. ESD version elevators are available.The DF200, Dispensing Pump Feeder can go up to 200 pumps per minute. Major benefits: High Speed. Orientation of pump nozzle on the outfeed. Left or Right outfeed. Multi Format Machine. Easy Changeover. Easy to use and maintain. High reliatbility and flexibilty. Reduction of production cost. Improvment of line productivity. Option for built-in electrical height adjustement of the machine. Built in storage for size parts
Operating temperature (°C)-20 to +60
Performance
Max speed (m/min)30
Other technical features
Type de chaîneChaîne plane
