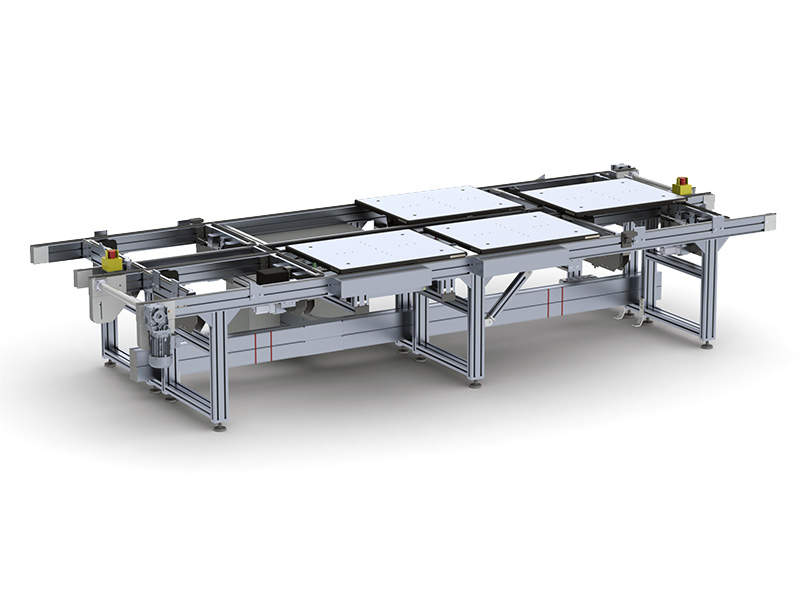

HU Twin Track Pallet Conveyors

Smart twin track pallet conveyor for heavy loads with standard modules including pre-defined control logic.

Basic Info

  • TECHNOLOGY: Puck and Pallet Conveyor Systems
  • INDUSTRY: Electronics, Pharma & Healthcare, Industrial Goods, Automotive & Racing

Description

​The HU twin track pallet conveyor is a smart twin track pallet conveyor for heavy loads with standard modules, including pre-defined control logic. It handles individual products on product carriers (pallets). The pallet conveyors are suitable for assembly and test processes in particular. Twin track pallets are also used if the product has a considerable size or weight.

The standard pallet width is 1040 mm, and the conveyed products vary from a few grams up to 200 kg.

Configurable standard modules make it easy and fast to create advanced and straightforward layouts for routing, balancing, buffering, and positioning pallets. The RFID identification in the pallets enables one-piece track-and-trace and production control of the line.


Technical Documents:

HU Twin Track Pallet Conveyors

Detailed Info

Packaging features
Packaging TypeAsymmetric, rectangular, round, symmetric
Packaging typeAll products and materials that fits on the pallet
Product range
Max product length (mm)1040
Max product width (mm)1040
Product features
Product stateClean, dirty, dry
Production environment
Environment typeDry, ESD
Operating temperature (°C)-20 to +60
Performance
Max speed (m/min)15
Other technical features
Chain typeRoller-top chain
